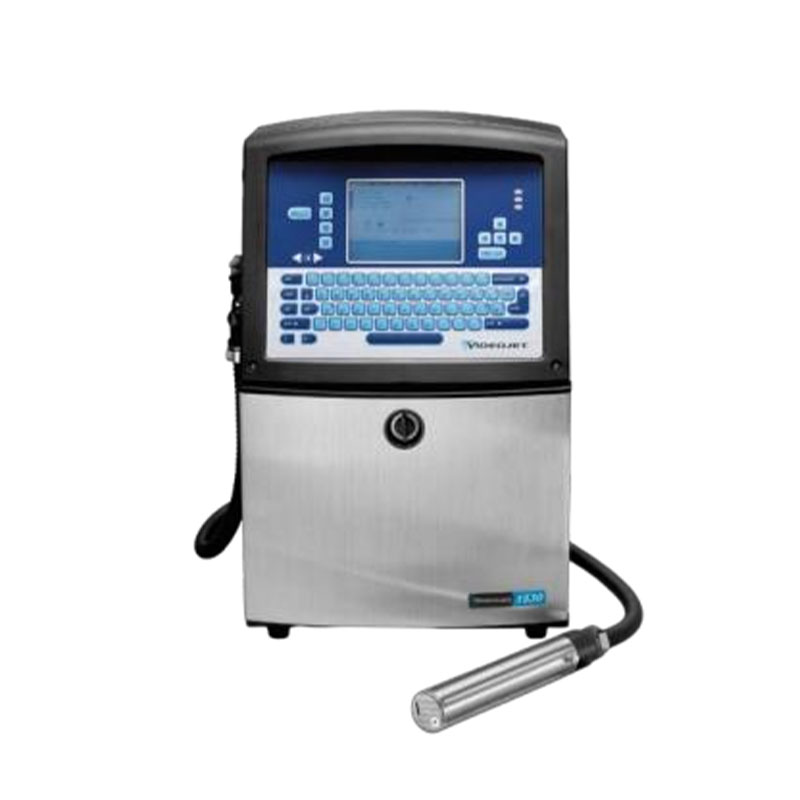

videojet 1530 Continuous inkjet printer

Line speed capability

Can print 1 to 5 lines of print at speeds of up to 914 ft./min.

(278.6 m/min.) (10 characters per inch, single line of print)

Font matrix configuration

Single-line: 5×5, 5×7, 7×9, 9x 12, 10x 16, 16×24, 25×34

Twin-line: 5×5, 5×7, 7×9, 9x 12, 10x 16

Tri-line: 5×5, 5×7, 7×9

Quad-line: 5×5, 5×7

Five-line: 5×5

Linear bar codes

UPC A&E; EAN 8 & 13; Code 128 A, B & C;

UCC/EAN 128; Code 39; Interleaved 2 of 5

DataMatrix codes

10x 10, 12x 12, 14x 14, 16x 16, 18x 18, 20×20, 24×24, 34×34

Nominal character height

Selectable from 0.079” (2 mm ) to 0.40” ( 10 mm ), depending on font

Throw distance

Optimal: 0.472” ( 12 mm)

Range: 0. 197” (5 mm) to 0.591” ( 15 mm)

Keyboard

Membrane style with tactile feedback, including 72 numeric, alphabetic, and

special

function keys. PC-style layout to approximate international PC convention.

Display

320×240 Bright blue backlit 5.7” LCD display

WYSIWYG onscreen message editing

Custom logo/graphics

Can be created directly on printer or PC with optional Videojet Logo Creator

software

Character sets

Chinese, Russian/Bulgarian, Turkish/Scandinavian, Greek, Arabic,

Japanese/Kanji, Hebrew, Korean, East European and European/American

Languages and interface options

English, German, French, Italian, Spanish, Dutch, Portuguese, Polish, Turkish

Willett Simple Interface (WSI)

Data interface

RS232, RS485 and ethernet (standard)

Clarisoft/Clarinet® via RS232 and ethernet

Message management via USB

Message storage

100 complex messages; unlimited storage using USB

Environmental protection

IP55 (IP65 option); no plant air required; stainless steel cabinet

Printhead

Heated printhead

Positive air (standard)

Diameter: 1.63” (41.3 mm)

Length: 10.62” (269.8 mm)

Printhead umbilical

Ultra flexible

Length: 9.84’ (3 m) optional 19.69’ (6 m)

Diameter: 0.91” (23 mm)

Bend radius: 4.0” ( 101.6 mm)

Make-up fluid consumption

As low as 2.4 ml per hour

Fluids containers

Ink Smart Cartridge™ 0.793 qt. (750 ml)

Make-up Smart Cartridge 0.793 qt. (750 ml)

Temperature/humidity range

32°F to 122°F (0°C to 50°C)

10% to 90% RH non-condensing

With selected inks; actual installation may require additional hardware

based on production environment conditions

Electrical requirements

Nominal supply power 100- 120 / 200-240 VAC at 50/60 Hz., 120 W

Approximate weight

Unpacked and dry: 46.2 lbs. (21 kg)

Options

Dry air kit for high humidity (requires plant air)

60 or 70 micron nozzle

90 degree printhead

Wide range of accessories
