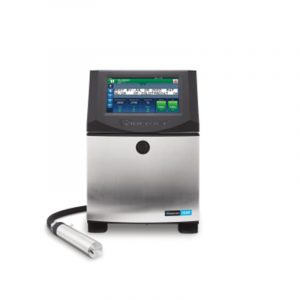

Videojet 1880 inkjet Printer

Line speed capability

Can print 1 to 5 lines of print at speeds of up to 1,097fpm (334mpm)

( 10 characters per inch, single line of print)

Font matrix configuration

Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9x 12, 10x 16, 16×24, 25×34

Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9x 12, 10x 16

Tri-line: 4×5, 5×5, 4×7, 5×7, 7×9

Quad-line: 4×5, 5×5, 4×7, 5×7

Five-line: 5×5

Linear bar codes

UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;

Code 39; Interleaved 2 of 5; 2D DataMatrix; GS1

DataMatrix codes

10x 10, 12x 12, 14x 14, 16x 16, 8x 18, 18x 18, 20×20, 22×22, 24×24, 26×26, 8×32,

32×32, 12×36, 16×36, 16×48

QR codes

21×21, 25×25, 29×29, 33×33

Error correction mode L, M, Q or H

Nominal character height

Selectable from 0.079” (2mm ) to 0.40” ( 10mm ), depending on font

Throw distance

Optimal: 0.472” ( 12mm)

User interface

10.4” 16:9 high-response TFT-LCD touch screen

WYSIWYG touch to edit message editing

Custom logo/graphics

Import from USB

Can be created via optional CLARiSOFTTM software*

Character sets

Chinese, Russian/Bulgarian, Turkish/Scandinavian, Greek, Arabic, Japanese/Kanji,

Hebrew, Korean, Thai, East European and European/American

Languages and interface options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German,

Greek,

Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,

Romanian, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai,

Traditional Chinese, Turkish and Vietnamese

Input/output

Standard: Product detect input, Encoder input, Beacon (Alarm light) output,

RS232 (USB to RS232 converter), Relay output (2x), USB 2.0 (2x), Ethernet LAN

Optional: Second product detect input, Second Ethernet LAN, Message select (2x),

PEC/SENC loop output, Digital I/O

Message storage

More than 250 complex messages

Environmental protection

IP55, no plant air required, 201 stainless steel cabinet or

IP66, no plant air required, 316 stainless steel cabinet

Printhead

Dynamic 90° , 350° rotating printhead

Heated printhead

45 degree slanted printhead face

Ink build-up sensor

Auto-rinse

Clean FlowTM technology (optional)

Diameter: 1.6” (41.3mm )

Length: 10.4” (265.3mm )

Printhead umbilical

Ultra flexible, overmolded

Length: 9.84’ (3m); optional 19.69’ (6m)

Diameter: 0.67” ( 17mm)

Bend radius: 4.0” ( 101.6mm)

Fluids containers

Ink and Make-up Smart Cartridge™ 1.06 qt (1000ml); optional 0.793 qt (750ml)

Temperature/humidity range

32°F to 122°F (0°C to 50°C)

10% to 90% RH non-condensing

With selected inks; actual installation may require additional hardware

based on production environment conditions

Electrical requirements

Nominal supply power 100-240 VAC at 50/60Hz, 70W

Approximate weight

Unpacked and dry: 48.5lbs. (22kg)

Options

60 or 70 micron nozzle

Dry air kit for high humidity (requires plant air)

SIMPLICiTYTM Workflow Modules: Ethernet/IPTM or PROFINET, Scan2RunTM

Wide range of accessories

Straight printhead
