Videojet 7610 Laser Marking Systems

Marking formats

Standard fonts (Windows® TrueType®/ TTF; PostScript®/ PFA, PFB; Open

Type®/ OTF)

and individual fonts, such as high-speed or OCR

Machine readable codes: ID-MATRIX (ECC100, 140, 200: 10x 10 for square

formats, 8×8 to 16×48 for non-square formats; ECC plain; QR code); BAR CODES

(BC25/25i/39/39E/93/ 128; GS1- 128; UPC_A; RSS14TR/ST/STC; RS LIM/EXP)

Graphics/

graphic components, logos, symbols, etc. (dxf, jpg, ai, etc.)

Linear, circular, angular text marking; rotation, reflection, expansion, compression

of

marking contents

Sequence and serial numbering; Automatic date, layer and time coding, real-time

clock;

Online coding of individual data (weight, contents, etc.)

Laser source

Ytterbium (Yb) pulsed fiber laser

Power class 100-Watt

Central emission wavelength: 1064nm (min: 1055nm, max: 1075nm)

Beam deflection

2 high-speed galvanometer scanners

Beam orientation

90-degree (standard) and straight-out (option)

Focusing (precision optics)

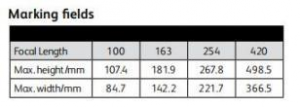

Focal lengths: f=100/ 163/254/420mm

Multiple operator interface options

Smart Graph software on PC; configurable in 12 languages (option)

Language capabilities*

Brazilian Portuguese, Chinese, Czech, Danish, Dutch, English, French, German,

Italian,

Japanese, Polish, Portuguese, Russian, Spanish; interface dependent

Electrical requirements

100-240 VAC (autorange), 700 VA, 1 PH, 50/ 60 Hz

Cooling system

Air cooled

Temperature/Humidity Range

10 – 35° C (50 – 95° F) and up to 40°C ( 104° F) with a duty cycle of 70%;

10 – 90%, non-condensing

Sealing and safety standards

Marking unit: IP54

Supply unit: IP22

LASER CLASS 4 product (acc. to EN 60825- 1:2014)

Approximate weight

Supply unit: approx. 25kg (55lbs.)

Marking unit: approx. 8kg ( 18lbs.)

Applicable certifications

CE, TÜV/NRTL, FCC
