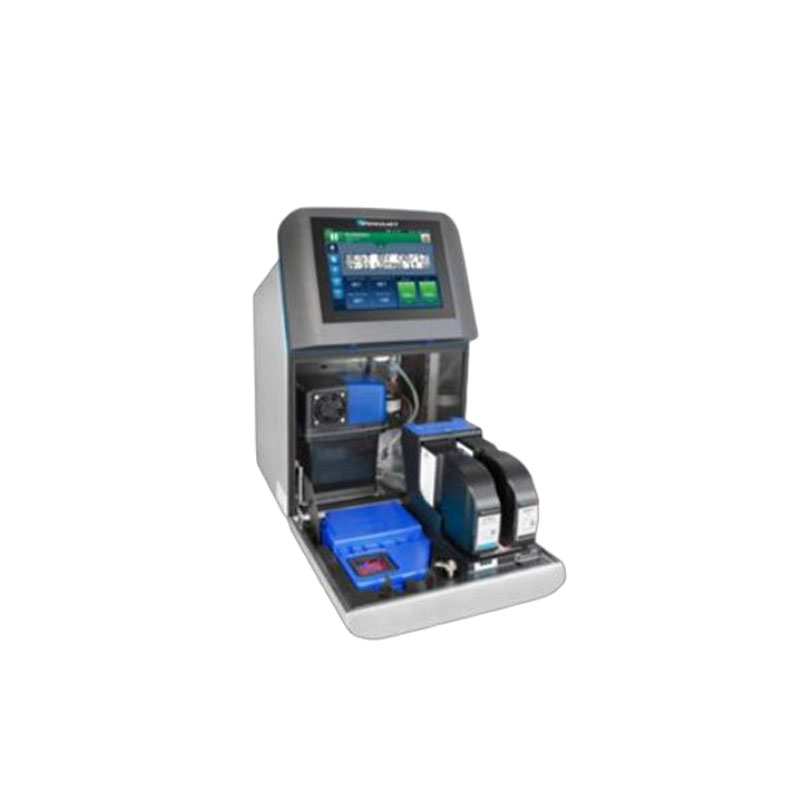

Videojet 1860 inkjet Printer

Line Speed Capability

Can print 1 to 5 lines at 293 m/min (960 ft/min)

( 10 characters per inch, single line print)

font matrix configuration

Single row: 5×5, 4×7, 5×7, 7×9, 9x 12, 10x 16, 16×24, 25×34

Double row: 5×5, 4×7, 5×7, 7×9, 9x 12, 10x 16

Three rows: 5×5, 4×7, 5×7, 7×9

Four rows: 5×5, 4×7, 5×7

Five elements: 5×5

1D barcode

UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;

Code 39; Interleaved two or five barcodes; 2D DataMatrix; GS1

DataMatrix encoding

10x 10, 12x 12, 14x 14, 16x 16, 8x 18, 18x 18, 20×20, 22×22, 24×24,

26×26, 8×32, 32×32, 12×36, 16×36, 16×48

Nominal character height

Choices: From 2mm (0.079″) to 10mm (0.40″) depending on height

font

Printing distance

Optimum Distance: 12mm (0.472″)

Range: 2 mm (0.079 in) to 20 mm (0.787 in)

User Interface

10.4-inch high-sensitivity TFT LCD touch screen

WYSIWYG touchscreen editable message

Custom Logo/Graphics

Can be created with optional CLARiSOFT® software*

character set

Chinese, Russian/Bulgarian, Turkish/Scandinavian, Greek, Arabic,

Japanese/Kanji, Hebrew, Korean, Thai, Eastern and European

languages/American English

Language and interface options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German

language, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian,

Polish,

Brazilian Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Spanish,

Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

input Output

Product detection input

Shaft encoder input

Signal light (alarm indicator) output

Requires RS232 interface kit

Relay output (2x)

USB 2.0 (2x)

Ethernet, LAN

information storage

250+ complex messages

Protection class

IP55, no factory air required, stainless steel enclosure or

IP66, no factory air required, 316 stainless steel enclosure

sprinkler

Heated, 45-degree angled printhead

Clean FlowTM Clean Flow Technology

Diameter: 41.3 mm ( 1.6 in)

Length: 240.6 mm (9.5 in)

Nozzle throat

super flexible

Length: 3m (9.84ft), optional 6m ( 19.69ft)

Diameter: 17 mm (0.67 in)

Bend Radius: 101.6 mm (4.0 in)

Ink/Solvent Consumption

4.5 ml/hour (20 °C methyl ethyl ketone)

Cartridge/Solvent Cartridge

Smart Cartridge™ Smart Cartridge/Solvent Cartridge 1000ml ( 1.06qt)

temperature/humidity range

0 °C to 50 °C (32 °F to 122 °F)

10% to 90% RH non-condensing

Use selected inks; actual installation may require additional hardware depending on production

environment conditions

Electrical requirements

Rated Power 100-240 VAC, 50/60 Hz, 50 W

Approximate weight

Unpackaged dry weight: 22 kg (48.5 lb)

Options

Dry air kit for high humidity environments (requires factory air)

Advanced I/O

SIMPLICiTYTM Workflow Module

Various accessories
